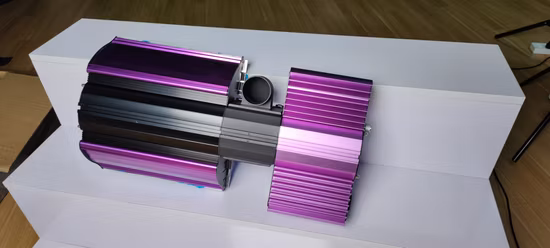

Grow Light HPS 400V 600W
New 600W/720W lighting fixture for 400V HPS lamps.POWERFUL!DIMMABLE!Efficient Reflector Design!Works with 6-step manual ;
Basic Info.
Model NO. | TPS600W-G400 |
Warranty | 3 Years |
Housing Material | Aluminum |
Life | 80000h |
LED Chips | 400V HPS |
Certification | CE, RoHS, ETL |
Programmable | Applicable with Lighting Controller |
Protection Circuits | Complete Input/Output Circuit Protections |
Dimmable | 6-Step and Rj11 Cable Remote Control |
Transport Package | Individual Colorful Box |
Specification | COMPACT SIZE / PACKING |
Trademark | Techone |
Origin | China |
HS Code | 8504101000 |
Production Capacity | 100000/Year |
Product Description
New 600W/720W lighting fixture for 400V HPS lamps.POWERFUL!DIMMABLE!Efficient Reflector Design!Works with 6-step manual dimming, and RJ11 based Cable Lighting Controller
Electronic ballast for high pressure sodium lamps | SPECIFICATION | ||
Model number | TPS600W-G400 | ||
Dimming mode | Maual / RJ11 remote control | ||
Rated Output wattage | >600W, dimming level 300~720W | ||
Wiring dimming wattage(See LED tube code in annex) | Manual dimming does not function when dimming wire is plugged-in.Voltage from dimming wire:2V±0.3V= Off, >2.5V±0.3V=On, 2.5~12Vdc reflects to 635W~1270W(±10%) with linearity<8% | ||
Input V/C(range, 200/240Vac) | 200V/3.4A | ||
240V/3A | |||
Max 3.3A / fuse 10A | |||
Output frequency | >70kHz | ||
Efficiency | >93% @ 240Vac | ||
Ignition voltage | <4.5KV | ||
Required lamp Voltage | 220V | ||
Input frequency | 50 and 60Hz compatible | ||
PF | >0.97 | ||
OCV | >300V | ||
THD | <10% | ||
CCF | <1.7 | ||
Max distance from ballast to lamp | 3m | ||
Operating temperature range | -20~40ºC | ||
Max case temperature | 90ºC | ||
Safety and regulation | IEC 61347 | ||
EMC | based on FCC part 18 A | ||
Protection against | |||
Short-circuit | Yes | ||
Open-circuit | Yes | ||
Ignition failure | Yes | ||
Overheated | Yes | ||
EOL | Yes | ||
Soft-start | Yes | ||
Lamp model or ANSI | 600W 400V HPS lamp x1 | ||
Weight | 2kg | ||
Dimensions | 230*256.4*120mm | ||
Vantilation | Natural | ||
APPLICATIONS | |||
Grow lighting, Outdoor lighting, Street lighting, Tanning | |||
Plug-and-play design, triangle wave output, | |||
Wide AC input range | SMART FEATURES | ||
Indicator definition | |||
Status code | Status | ||
F flicks | Soft-Off | ||
A flicks | Network standby | ||
A on | Network standby | ||
F on | Step dimming | ||
1 flicks | Power on | ||
2 on | Over voltage | ||
3 on | Low voltage | ||
4 on | Over heated | ||
5 on | Output open | ||
6 on | Output short | ||
7 on | EOL |
